Induction Hardening Process Validation: Qualification, Testing and Requalification

How to Verify Hardening Results, Assess Process Changes and Determine When Requalification Is Needed

An induction-hardened component may meet its surface hardness requirement but still have insufficient case depth, an incorrect hardened pattern, or inconsistent results between parts. A passing hardness test alone does not prove that the process is suitable for production.

Induction hardening process validation establishes evidence that a defined combination of equipment, tooling, material, heating settings, and quenching conditions can produce parts meeting specified requirements. It also establishes the basis for deciding whether later process changes require additional verification or requalification.

1. What Is Induction Hardening Process Validation?

Process validation demonstrates that an induction hardening process can achieve its intended results under defined conditions. Process qualification refers to the formal acceptance of that process under the applicable approval procedure.

Before qualification trials, the manufacturer must establish the component’s acceptance requirements:

•Material and initial condition: Steel grade, prior heat treatment, and starting microstructure can influence hardenability and the resulting hardened case.

•Required hardened region: The drawing should identify the surfaces and locations where hardening is required.

•Hardness and case depth: Acceptance criteria must specify the required hardness, measurement locations, and applicable case-depth definition.

•Additional requirements: Depending on the component, these may include hardened-pattern evaluation, crack inspection, microstructure, distortion, or dimensional checks.

Qualification must also identify the process conditions that affect these results.

Process Condition	Potential Effect
Power, frequency, and heating time	Heating characteristics and thermal cycle
Inductor geometry and coil-to-part gap	Heating distribution and hardened-pattern location
Scan speed and workpiece positioning	Heating exposure and consistency
Quench flow, distribution, temperature, and timing	Cooling conditions and hardening response
Material and initial condition	Hardenability and resulting case characteristics

The objective is to establish a qualified process window supported by actual trials, not simply record the settings available on the machine.

2. How to Validate an Induction Hardening Process

A practical validation procedure connects the component requirements with representative trials and documented inspection results.

①Define the Qualification Scope

Identify the workpiece, material condition, drawing revision, equipment, inductor, fixture, heating program, and quenching arrangement.

②Establish Trial Conditions

Develop initial heating and quenching settings based on the required hardened region, material, geometry, and equipment configuration.

These are development settings until qualification evidence supports their approval.

③Conduct Representative Trials

Use workpieces representative of the intended production process. Consider relevant variation in material condition, geometry, positioning, and production conditions.

For scanning induction hardening, the trial plan may need to examine the scan-start, central, and scan-end regions. If an operating range is proposed, its relevant limits must be evaluated rather than assuming that one successful nominal setting qualifies the entire range.

④Verify the Hardening Results

Compare the tested parts with the specified acceptance criteria. Depending on the application, this may involve surface hardness, hardness traverses, effective case depth, hardened-pattern location, crack inspection, and dimensional checks.

For detailed inspection methods, see How to Inspect Induction-Hardened Parts: Why Surface Hardness Alone Is Not Enough.

⑤Approve the Qualified Conditions

If the required results are achieved, document the process configuration, supported operating limits, inspection evidence, and approvals.

Passing product inspection demonstrates compliance for the tested parts. It does not automatically qualify untested materials, equipment configurations, or parameter ranges.

Example: Scanned Induction Hardening of a Shaft

Consider a steel shaft requiring a specified hardened length, surface hardness, and effective case depth.

Trial shafts are processed using a defined inductor, scanning program, heating conditions, and quench arrangement. Inspection covers the required hardened region, including relevant start and end locations.

If the surface hardness is acceptable but the case depth is insufficient near the scan-start area, the process has not met all qualification requirements.

The manufacturer must investigate the result, adjust the process where necessary, and verify the affected characteristics again before approval.

The resulting qualification applies to the defined material, equipment configuration, and supported process conditions. It does not automatically extend to a redesigned coil or a different steel grade.

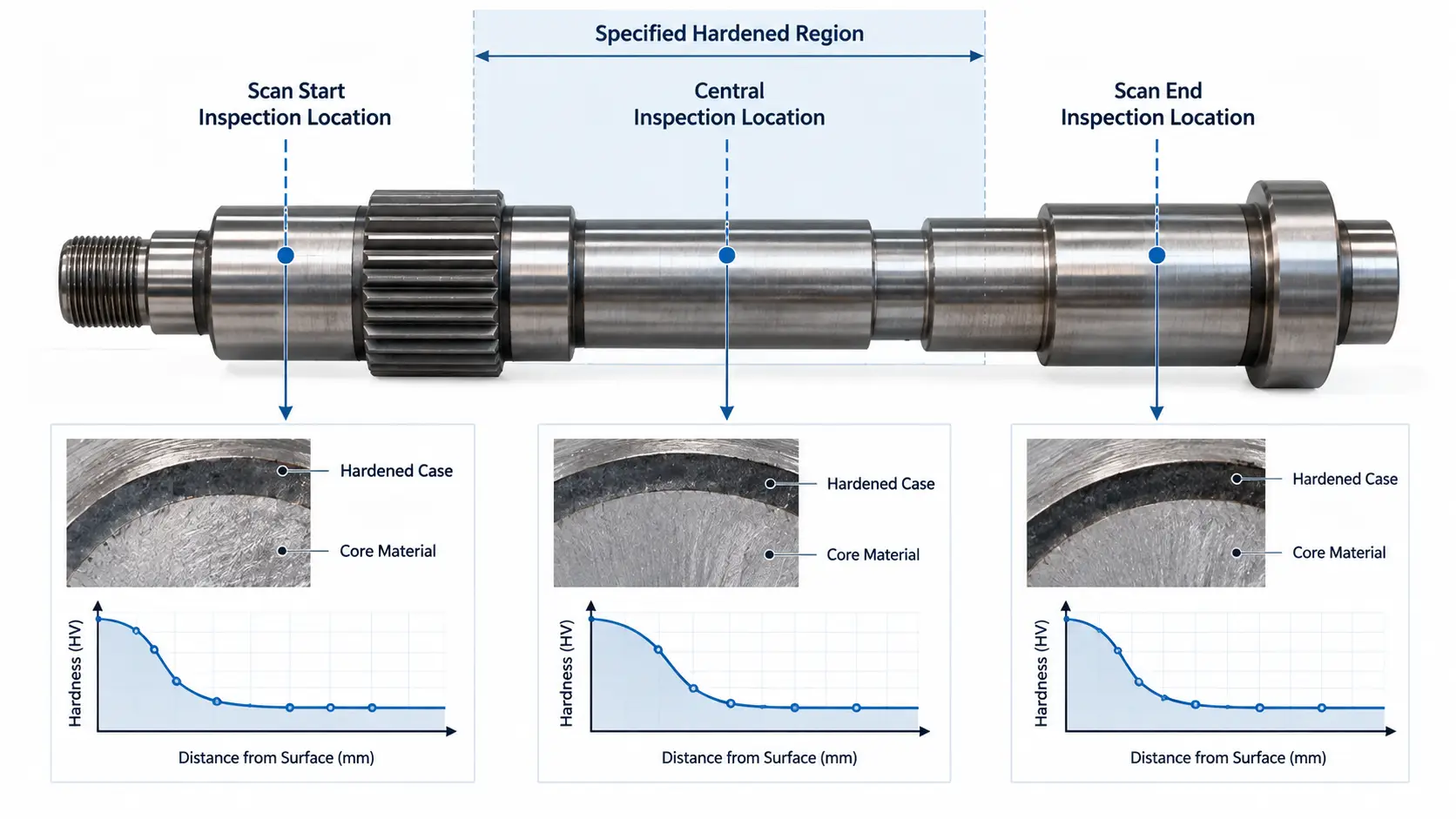

Shaft inspection locations for scanned induction hardening validation.

3. When Is Induction Hardening Requalification Required?

Requalification may be necessary when a change affects conditions covered by the original qualification.

Not every adjustment requires complete requalification. The decision depends on the nature of the change, its potential effect on the hardening result, and applicable customer or quality requirements.

Process Change	What Should Be Evaluated
Induction coil replacement or redesign	Coil equivalence, heating distribution, and hardened-pattern consistency
Power supply or heating program change	Effects on the heating cycle and approved operating limits
Scan speed or fixture adjustment	Workpiece positioning, heating exposure, and hardened-region location
Quenching system modification	Flow, spray distribution, cooling conditions, and hardening response
Material or workpiece change	Hardenability, geometry, and applicability of existing qualification evidence
Equipment relocation or process transfer	Equipment equivalence and the need for additional verification

For example, replacing an inductor with a verified equivalent may require a different level of evaluation from installing a redesigned inductor that changes the heating distribution.

Three questions help determine the appropriate response:

①Is the change within the qualified configuration and approved operating limits?

②Could it affect hardness, case depth, hardened-pattern location, or another specified characteristic?

③Do customer specifications or applicable procedures require additional testing or formal approval?

Depending on the answers, the response may involve documented engineering review, targeted product verification, additional qualification trials, or complete requalification.

The important distinction is whether the existing evidence still supports the changed process.

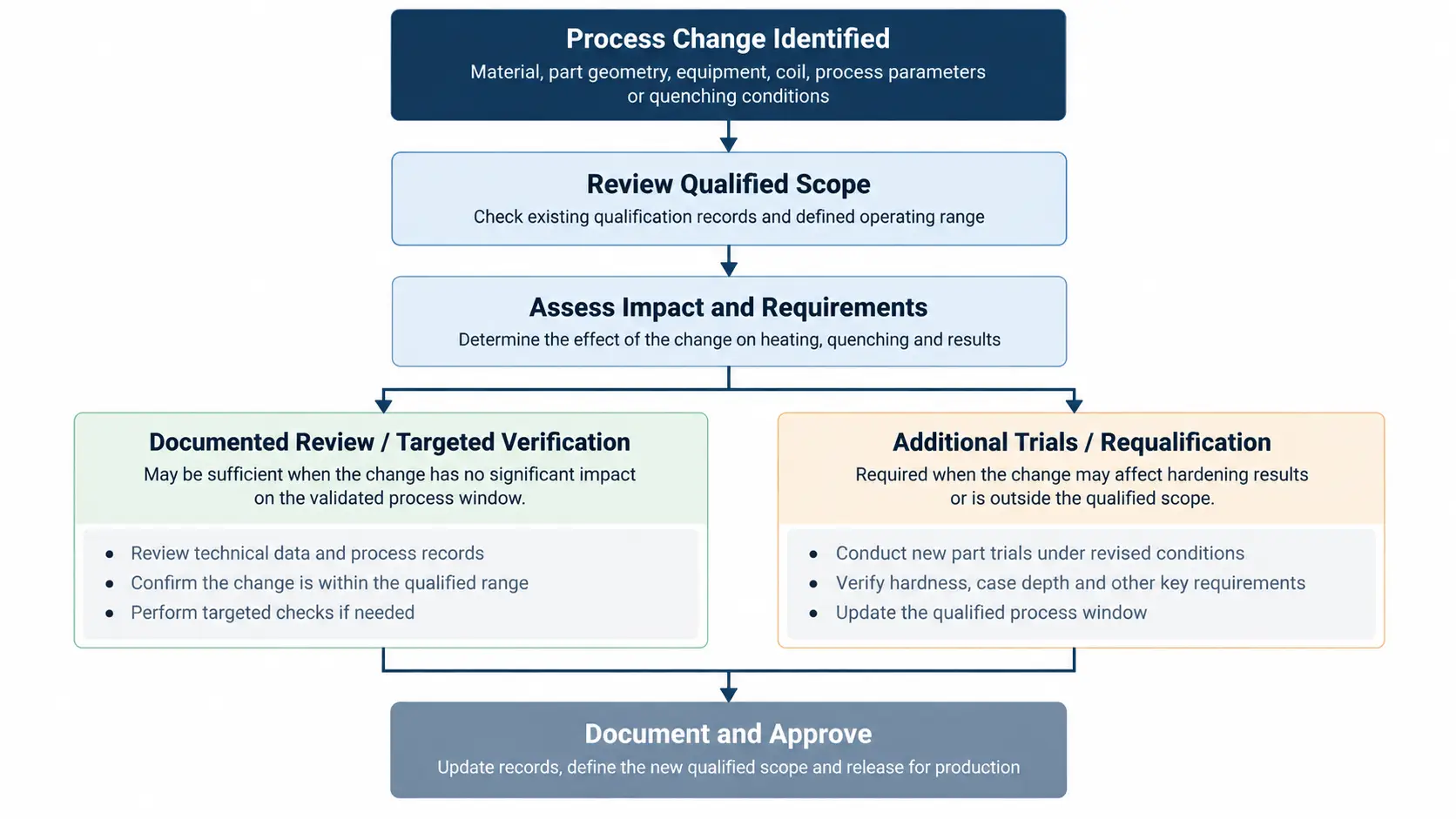

Process change evaluation for induction hardening requalification.

4. What If Induction Hardening Process Validation Fails?

A failed validation result means that the tested conditions have not demonstrated compliance with all specified requirements.

Investigation should begin with the failed characteristic and its location rather than immediately changing machine settings.

Observed Result	Initial Investigation
Surface hardness passes, but case depth is insufficient	Confirm the hardness traverse and measurement location; examine the heating cycle, material response, and quenching conditions
Hardened pattern is shifted or incomplete	Check inductor position, coil-to-part gap, fixture alignment, and workpiece motion
Results vary between workpieces	Compare material batches, positioning, heating records, and quench delivery
Cracks or unacceptable distortion	Examine material condition, geometry, heating and cooling history, and relevant mechanical constraints

These are possible investigation directions, not definitive diagnoses.

For example, an incomplete hardened pattern does not necessarily mean insufficient power. Incorrect coil positioning or workpiece motion may produce a similar result.

After identifying the likely cause, the manufacturer should make controlled adjustments, repeat the necessary tests, and document the results before approving the process.

If a problem is discovered during production, potentially affected parts must be evaluated under the applicable nonconforming-product procedure. Correcting the process does not automatically make previously produced parts acceptable.

5. Qualification Records and Production Control

Once qualified, the approved process should be maintained through controlled production instructions and monitoring.

Relevant records may include material identification, equipment and inductor configuration, heating program, motion settings, quenching conditions, inspection results, and approved operating limits.

Routine monitoring helps confirm that production follows the qualified conditions, but machine signals alone do not replace required verification of hardness, case depth, or other product characteristics.

Changes to equipment, tooling, materials, or process settings should follow the applicable change-control procedure.

Industry documents such as ASTM A1100, SAE ARP4715, and AIAG CQI-9 may be relevant to qualification or heat-treating quality requirements. They serve different purposes and are not universally mandatory for every induction hardening application. Their current editions and applicability should be confirmed against the customer’s requirements.
